Geothermal System Problems: What Actually Breaks, and the Signs You Need Service
Short answer: The most common geothermal problems are not the buried loop. In 700+ geothermal jobs at Hartzell’s Heat & Air since 2017, condensate drains and loop air or flushing each came up 150+ times, while compressors failed fewer than 15 times and not one loop field was replaced. Weak heating or cooling, short cycling and gurgling are the signs to call.
What breaks most on a geothermal system in Oklahoma?
I pulled every geothermal job in my service records since 2017 and counted what I actually worked on. Here it is, rounded down:
| What I worked on | Times in 700+ geothermal jobs since 2017 | What it usually means |
|---|---|---|
| Loop pressurize and flush | 150+ | Air in the loop. Maintenance, not a failure. |
| Condensate drain | 150+ | The most common repair I find. |
| Refrigerant charge | 100+ | A leak to find, or a charge that was off. |
| Loop pump or flow center | 45+ | The pump moves, so the pump wears. The pipe does not. |
| Thermostat | 45+ | Controls and communication. |
| Capacitor | 40+ | A cheap part that stops a motor. |
| Blower or motor | 30+ | Airflow, which also trips pressure faults. |
| Control board | 25+ | Board faults and failed outputs. |
| Compressor | fewer than 15 | The part everyone fears, and the least common big repair. |
| Loop field replaced | 0 | Loops last. |
The takeaway I keep coming back to: the biggest real problem with geothermal is maintenance nobody did, not catastrophic failure. A drain that was never cleaned, a loop that was never purged right, a pump that wore out. That is service work, not a new loop.
“We don’t replace the loops. They last.”Dave Hartzell, Hartzell’s Heat & Air, Kingfisher
What are the warning signs my geothermal system needs service?
| Sign | What it can mean | What you can safely do |
|---|---|---|
| Weak heating or cooling | Dirty filter, low airflow, low loop flow or a refrigerant problem. | Change the filter. If it persists, call. |
| Electric bill jumps in winter | Backup electric heat running because the heat pump is not keeping up. | Check that the thermostat is not on Emergency Heat. Then call. |
| Short cycling on and off | A control fault, a charge problem, a dirty filter, or a unit too big for the house. | Book a diagnostic. Short cycling wears the compressor. |
| Gurgling at the pump or flow center | Air in the loop. ClimateMaster lists a noisy pump as a sign of low pressure or air. | Note it and call. The loop may need purging and repressurizing. |
| Water around the unit | Usually a clogged condensate drain. | Turn it off at the thermostat if the floor where you stand is dry, and call. |
| A fault code on the unit or thermostat | The unit protected itself. | Write it down. Do not keep resetting it. |
A geothermal system that gets an annual check rarely surprises anybody. Most failures I see started as a small symptom that got ignored for a season.
Is it the loop or the equipment? How Hartzell’s tells

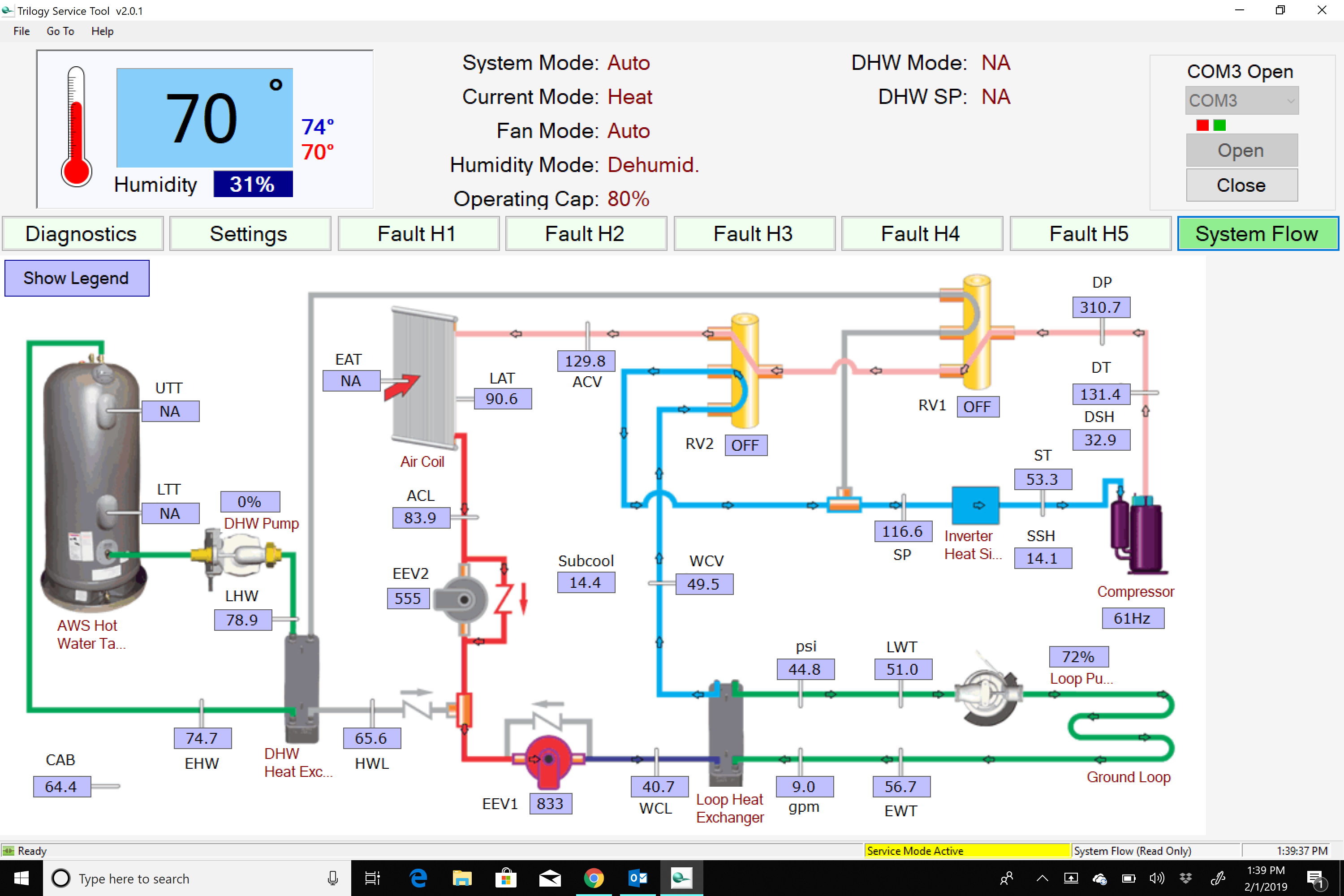

That is the whole job, and it is why I hold both credentials: IGSHPA accreditation on the ground loop side and ClimateMaster GeoElite dealer on the equipment side. I check loop pressure, flow and the entering and leaving water temperatures first. ClimateMaster’s troubleshooting guide lists delta T, delta P, GPM and antifreeze percentage as the water-side checks. If those numbers are healthy and the unit still struggles, the problem is the equipment. If they are off, I look at the flow center, the pump and the fittings before anybody talks about the yard. My guide to EWT, LWT, GPM and delta T explains the numbers, and where geothermal loop leaks actually are covers the leak side.
Why is my Oklahoma geothermal heat pump short cycling?
Short cycling is when the unit starts, runs a minute or two, shuts off and repeats. It is hard on the compressor. The usual causes are a control or thermostat fault, a refrigerant charge that is off, a dirty filter starving airflow, or a unit too big for the house. That last one is why I size every system from a heat load calculation, ASHRAE and ACCA Manual J methods, not a rule of thumb. A unit that is too big satisfies the thermostat too fast and never runs a full cycle.
When is geothermal repair cheaper than replacement in Oklahoma?
When the loop tests good, which is most of the time. A geothermal “replacement” in my book is the unit, never the loop. If the unit itself is worth saving, a geothermal rebuild at Hartzell’s starts at $3,500 installed, with up to a 5-year warranty when the loop verifies good, and it can add 8 to 10 years of life. Most geothermal unit replacements on an existing loop run $20,000 to $25,000, as I lay out on what geothermal actually costs in Oklahoma. If the unit is done, the estimate on a new system is free. My Geo 360 maintenance plans run $360 to $499 a year.
What does a geothermal service call cost?
The geothermal diagnostic at Hartzell’s Heat & Air is $348 flat. Weekday, night or weekend, it is the same $348, and it is the same for my maintenance plan members. I check loop pressure, refrigerant charge, the desuperheater, controls and the heat exchanger, and you get a written report and a quote before I leave. I work geothermal across Oklahoma out of Kingfisher, with 4.8 stars and 300+ Google reviews.
15+ years • 6,500+ jobs completed • 1,500+ Oklahoma homes served
Geothermal problem questions, answered
What are the most common geothermal system problems in Oklahoma?
In 700+ geothermal jobs in my records since 2017, the most common work was condensate drains and loop air or flushing, 150+ times each, then refrigerant charge 100+ times, and loop pumps or flow centers 45+ times. Compressors failed fewer than 15 times, and no loop field was replaced.
What does it mean when my geothermal loop loses pressure?
ClimateMaster says low loop pressure may come from pipe expansion with seasonal temperature changes, not a leak. In my experience, the rest is usually air working out of the loop, or a leak at a fitting, hose or the flow center at the house end, not the buried pipe. ClimateMaster calls at least one extra top-off after a complete heating and cooling season normal. The fix is to find the cause, then purge and repressurize.
Why does my geothermal heat pump keep turning on and off?
That is short cycling. Usual causes are a control or thermostat fault, a refrigerant charge that is off, a dirty filter, or a unit too big for the house. It needs a diagnostic before the compressor wears.
Should I repair or replace my geothermal system?
If the loop tests good, repair or rebuild usually wins. A geothermal rebuild at Hartzell’s starts at $3,500 installed, with up to a 5-year warranty when the loop verifies good. Most geothermal unit replacements on an existing loop run $20,000 to $25,000. The loop stays either way.
Does a geothermal loop wear out?
Not in my experience. I have not replaced a loop field in 700+ geothermal jobs since 2017, and I have loops on their third generation of equipment. Pumps and flow centers wear; the heat-fused pipe lasts.
How much does a geothermal service call cost in Oklahoma?
My geothermal diagnostic is $348 flat, any hour, and the same for plan members, with a written report and a quote before I leave. Call 405-375-4822.
Sources
The job counts are my own service records since 2017, rounded down. Technical checks come from ClimateMaster’s documents below. Prices are my current published prices.
