Geothermal Installation Oklahoma
A geothermal installation is a design project first and an equipment install second. The loop, ductwork, water side, electrical service, utility, and commissioning data decide whether the system will perform.
Installation data checklist
| Stage | Data needed | Why it matters |
|---|---|---|
| Home load | Manual J load, windows, insulation, air leakage clues, orientation, and design temperature. | Oversizing raises cost and short-cycling risk. Undersizing leans on backup heat. |
| Duct and airflow | Static pressure, return size, supply layout, filter path, and room complaints. | Geothermal equipment cannot fix a duct system that cannot move the air. |
| Loop field | Horizontal, vertical, pond, or open-loop feasibility; access, depth, distance, soil or water quality. | The loop is the long-life heat exchanger and usually the cost variable that decides the project. |
| Equipment | Capacity, staging, controls, flow center, desuperheater, and electrical requirements. | The heat pump, loop, pump, and ductwork have to match as one system. |
| Money path | Cash, normal financing, Comfort Plan eligibility, verified utility rebate source, and address check. | No rebate or lease term is treated as real until current source and project eligibility are verified. |
What a complete quote should show
Included work
Equipment, loop-field method, flow center, controls, electrical scope, duct tie-in, startup, commissioning, and documentation handoff.
Possible exclusions
Landscaping restoration, utility upgrades, unusual drilling conditions, well-water treatment, duct rebuilds, and owner-selected add-ons.
Commissioning proof
Entering and leaving water temperature, loop pressure, flow or GPM, airflow, electrical draw, control operation, and a written startup record.
Oklahoma site constraints that change the design

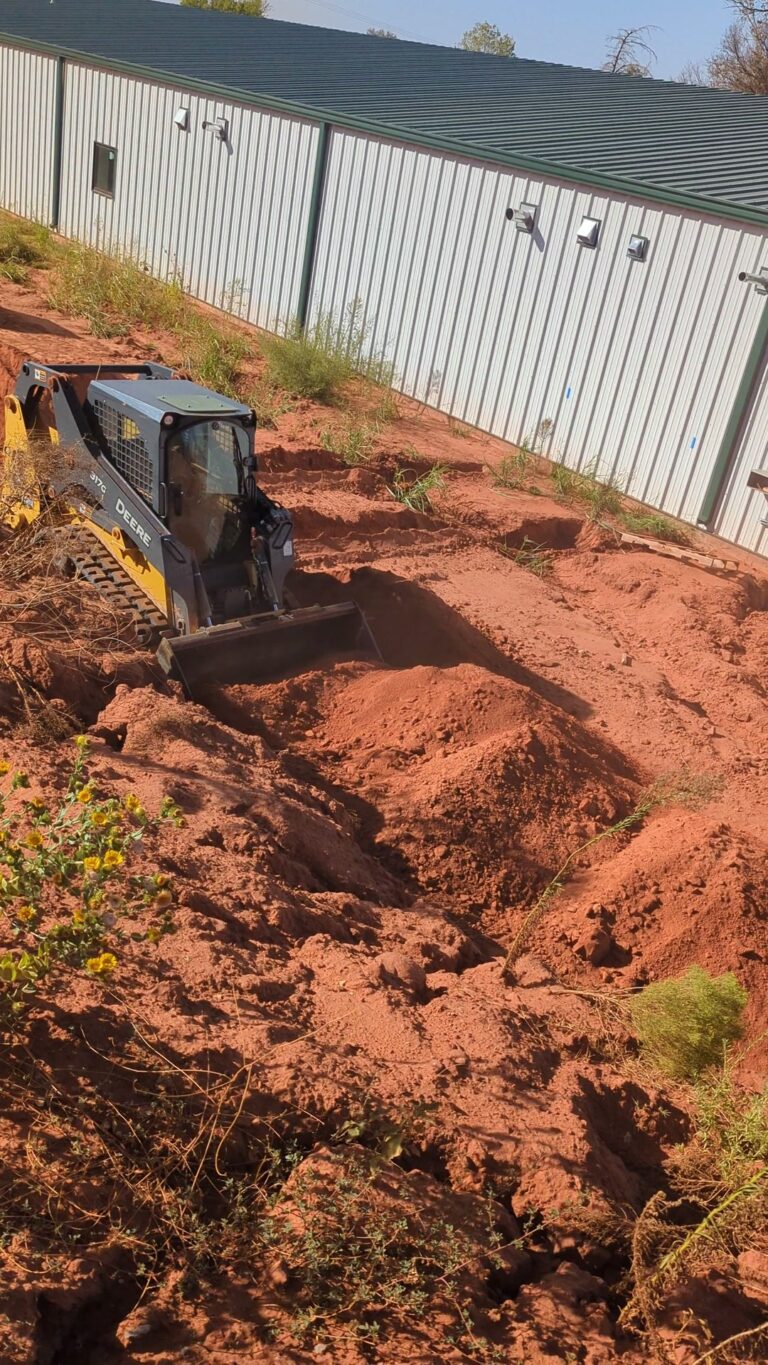

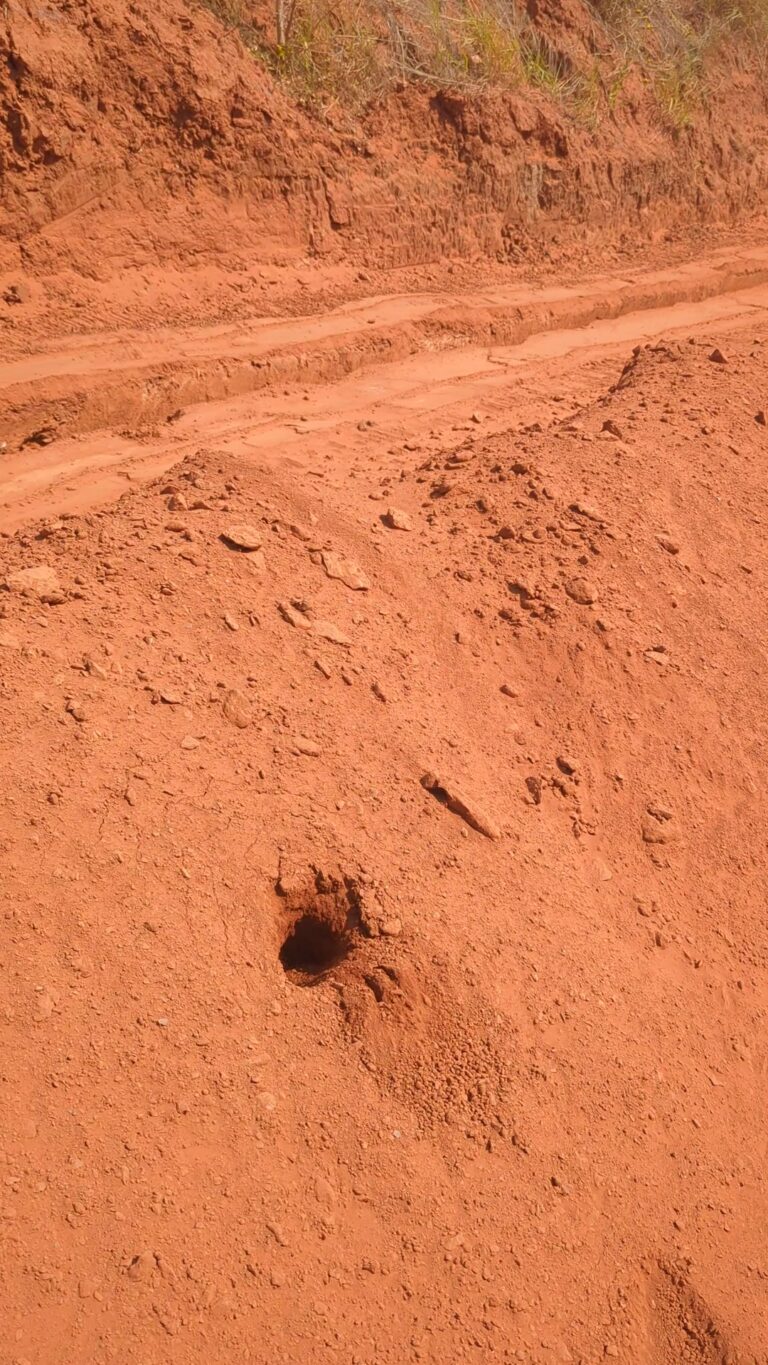

Kingfisher-area acreage often points toward horizontal loops. Edmond, Yukon, Mustang, and other tighter lots often need vertical drilling or a different plan. Pond loops need usable depth and stable water. Open-loop systems require water quality proof and a discharge path. The right answer is site-specific.
After installation
| Current geothermal plan | Price | Visits | Maintenance focus |
|---|---|---|---|
| Geo One Visit Spring or Fall 360 | $360/year | 1 | Loop pressure/fluid, indoor heat-pump inspection, desuperheater check when equipped, and written report. |
| Geo Spring and Fall 360 | $428/year | 2 | Two geothermal visits with loop, flow-center, coil, electrical, and desuperheater checks when equipped. |
| Geo Full Year 360 | $499/year | 2 | Top geothermal maintenance plan with the verified emergency-dispatch backstop and current diagnostic rule. |
