Geothermal diagnostic data Dave checks

A geothermal repair is not just a thermostat guess. The current geothermal diagnostic is $348 flat when water-source testing is needed. I quote repair work before I start.

System side	Data point	Why it matters
Loop	Loop pressure, flow/GPM, entering and leaving water temperature, freeze protection	Separates loop, pump, air, or water-side trouble from a refrigerant guess.
Indoor heat pump	Airflow, static pressure, electrical draw, controls, coil condition, refrigerant-circuit behavior	Shows whether the unit can safely move the heat the loop is delivering.
Homeowner safety	Visible alarm code, mode, auxiliary heat status, water location, sounds and smells	Useful observations do not require opening panels, loops, valves, refrigerant circuits, or unsafe spaces.

Related: safe homeowner geothermal questions and geothermal maintenance measurements.

Geothermal Heat Pump Install and Service at an Edmond, Oklahoma Estate

I installed the geothermal system at an estate just outside Edmond, Oklahoma, and I have kept it running ever since. It is a set of WaterFurnace Premier Series water-source heat pumps on a shared ground loop, and I am the shop the homeowner calls every time one of them needs a tune-up or a repair.

4.8 stars / 300+ reviews  |  Master HVAC License  |  IGSHPA Accredited Geothermal  |  BBB A+

The Job

This is a big geothermal home just outside Edmond, the kind of property with several heat pumps instead of one, all of them tied into a ground loop instead of an outdoor condenser. Geothermal is the quietest and most efficient way to heat and cool a house this size, but it is also a system most heating and air companies in Central Oklahoma never touch, because they do not work on water-source equipment and they do not understand the loop. I do. I am IGSHPA accredited for geothermal, I put this WaterFurnace Premier Series system in years ago, and I have been the one keeping these units running ever since.

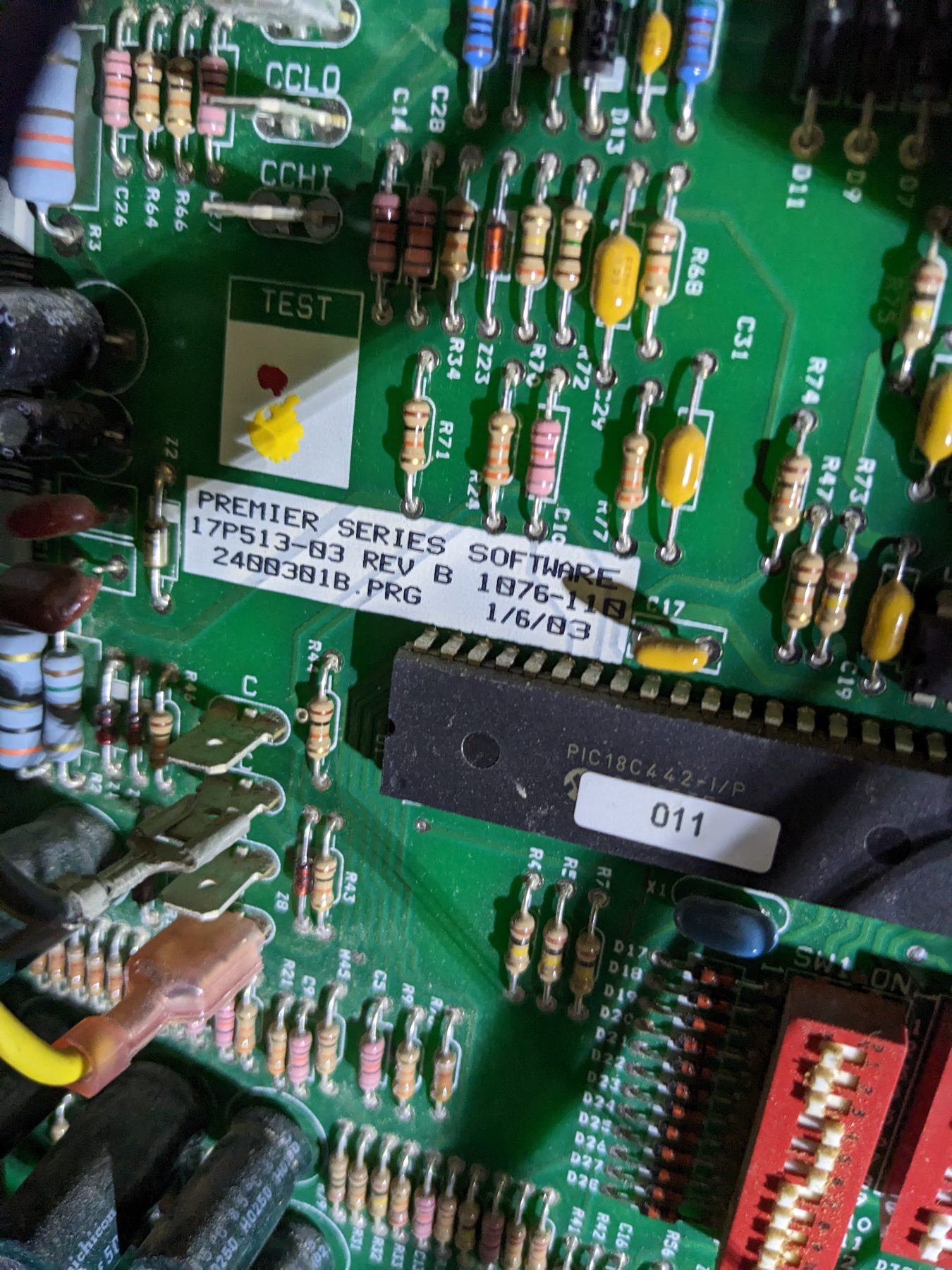

I installed these WaterFurnace water-source units, and I never left the property. Over the years I have done geothermal tune-ups, run diagnostics when a unit went down, replaced blower motors and control boards, cleared condensate problems, and checked the desuperheater that makes the home’s hot water. When the main geo unit quit, I was the one who showed up and got it cooling again. That is what a long-term geothermal relationship looks like: the same shop, year after year, on the same equipment.

Geothermal is its own animal. The loop, the flow center, the water-source heat pump, the desuperheater for hot water, none of that is on a normal split system, and you cannot fake your way through it. I have been doing HVAC for 47 years and geothermal is the part of the trade I am proudest of. If you own a geothermal home around Edmond or anywhere in Central Oklahoma and you are tired of explaining your system to a tech who has never seen a ground loop, that is exactly the call I want.

Equipment On Site

These are WaterFurnace Premier Series geothermal water-source heat pumps, built in Fort Wayne, Indiana. I installed them, and there is more than one of them on the property, all tied into a shared ground loop.

• WaterFurnace Premier Series water-source heat pumps, multiple cabinets on one shared ground loop. Each one runs on the loop instead of an outdoor condenser, which is what makes a geothermal home so quiet and so cheap to run.
• Ground loop and flow center: the units pull and reject heat through the loop in the ground, not the outside air. The loop pump and flow center are part of the system, and they are part of what a geothermal tech has to understand that a normal HVAC tech never sees.
• Desuperheater hot water: these units carry a desuperheater, which uses waste heat from cooling to help heat the home’s water. There is a large electric storage water heater on site that ties into the geothermal hot-water side.

On Site

Why It Mattered

A geothermal home is a great house to own and a hard house to get serviced. The systems last a long time and run cheap, but when something goes wrong, most of the phone book cannot help you, because they do not work on water-source equipment. The homeowner here does not have to wonder who to call. They call me. I installed the system, I know the loop, I know the units, and I do not have to learn the house from scratch every visit.

That is the real value of a long geothermal relationship. I keep the units tuned so they keep running efficiently, I catch the small problems before they strand somebody without heat or cooling, and I keep notes on every unit on the property. One shop, year after year, on equipment that almost nobody else in Central Oklahoma will touch.

Geothermal Service FAQ

Do you install and service geothermal heat pumps near Edmond, Oklahoma?

Yes. I install and service geothermal water-source heat pumps and ground loops across Central Oklahoma, including homes near Edmond. I installed and still take care of a large geothermal estate just outside Edmond, multiple WaterFurnace Premier Series water-source heat pumps on one shared ground loop. I am IGSHPA accredited for geothermal, which most heating and air companies in the area are not. I serve Kingfisher, Canadian, Oklahoma, Garfield, Logan, Major, and Blaine counties.

Why won’t most HVAC companies work on geothermal systems?

Most heating and air companies never train on water-source equipment, so they do not understand the ground loop, the flow center, or the desuperheater that makes your hot water. A geothermal heat pump is not wired or plumbed like a normal split system, and a tech who has never seen a loop can do real damage guessing at it. I am IGSHPA accredited and I have worked on geothermal for years, so the loop and the water-source units are exactly the work I want.

How much does a geothermal tune-up or diagnostic cost in Oklahoma?

A diagnostic visit is a $348 flat geothermal diagnostic when water-source testing is needed. Repair work is quoted before approval. For ongoing care, current Geo 360 maintenance options are Geo One Visit Spring or Fall 360 at $360/year, Geo Spring and Fall 360 at $428/year, and Geo Full Year 360 at $499/year. A tune-up keeps the units running efficiently and catches small problems before they leave you without heat or cooling. Call 405-375-4822 and tell me about your system.

What is a desuperheater on a geothermal heat pump?

A desuperheater is a small extra heat exchanger inside the geothermal heat pump that grabs waste heat while the system is cooling and uses it to help heat your domestic hot water. The units on the Edmond estate carry a desuperheater, and there is a large electric storage water heater on site that ties into the geothermal hot-water side. A desuperheater can reduce water-heating load when the system and controls are set up correctly, and it is one more thing a tech needs to understand before working on the unit.

Are there rebates for geothermal heat pumps in Oklahoma?

The federal geothermal tax credit expired December 31, 2025, so I will not promise you a tax credit that is gone. Some Oklahoma utilities publish geothermal rebate programs, but I verify the current utility source and your service address before treating a rebate as real. Which one applies depends on your meter, so call 405-375-4822 and I will tell you what your address qualifies for.
