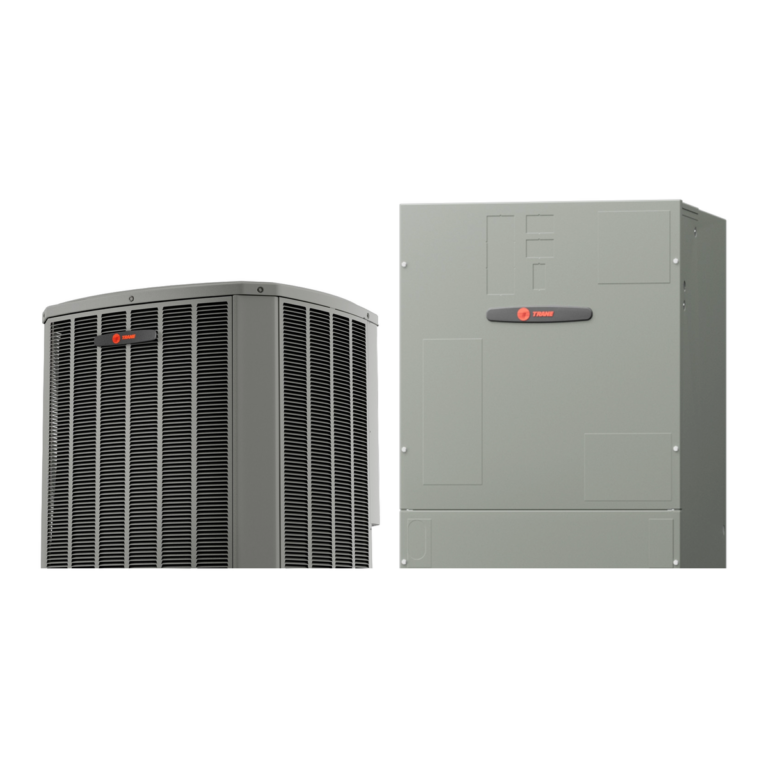

3 Ton Trane XR17 Multi-Speed Heat Pump and Air Handler System
Pick a size
AHRI certificate 216763464: 17.1 SEER2, 12.5 EER2, 9 HSPF2
Heat pump 5TWR7024A1000

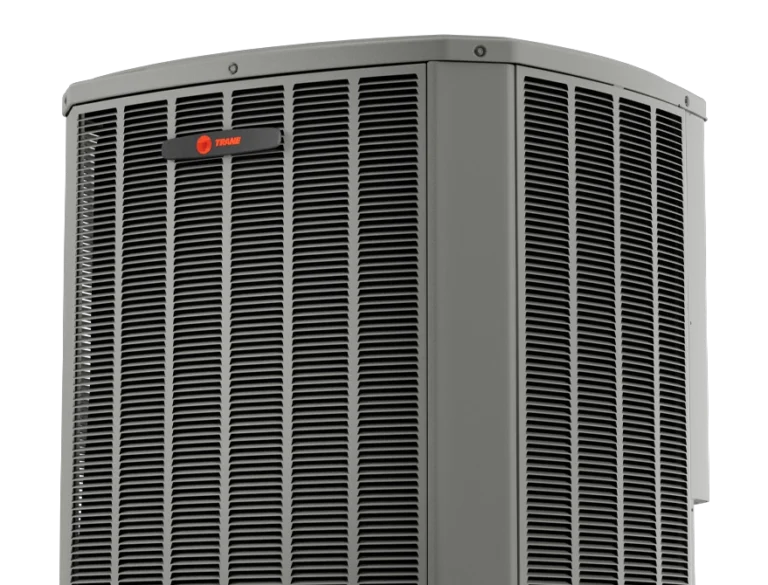

Trane XR17 Multi-Speed 2 ton heat pump
Warranty: 10-year compressor, outdoor coil and parts when registered within 60 days (5 years if not). Parts only, not labor.
Air handler 5TEM6B02AV21S

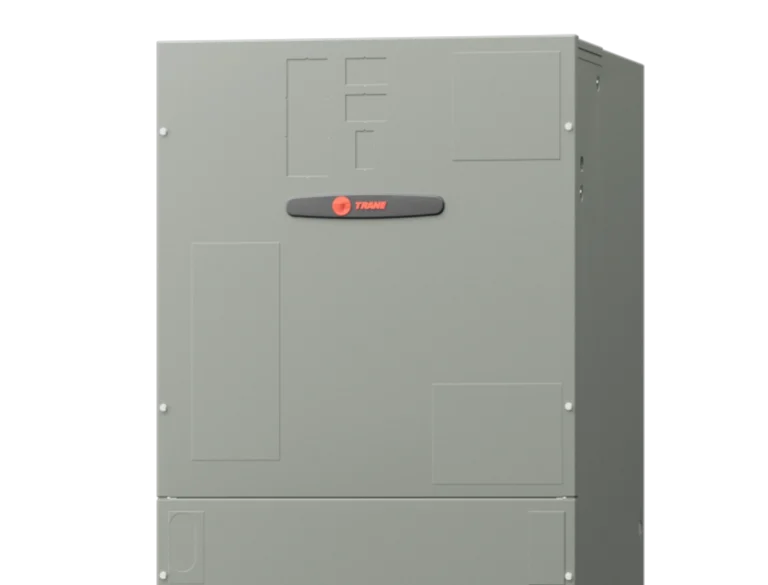

Trane 5TEM6 variable-speed air handler, 1.5-2 ton
Warranty: 10-year parts when registered within 60 days. Parts only, not labor.
Heat strip BAYHTR1508BRKC
8 kW electric backup heat, with breaker
Warranty: 10-year limited parts warranty on the heater. Parts only, not labor.
Thermostat TCONT824AS52DC

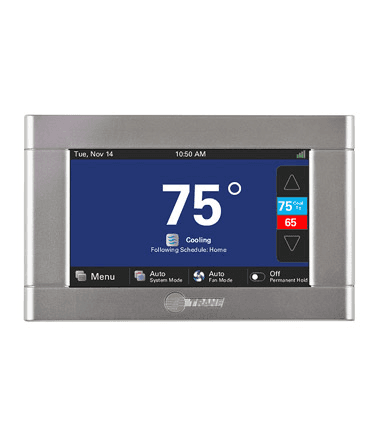

Trane XL824 Wi-Fi smart thermostat
Warranty: 10-year parts when registered within 60 days. Parts only, not labor.
AHRI certificate 216763780: 17.1 SEER2, 12 EER2, 9 HSPF2
Heat pump 5TWR7036A1000
Trane XR17 Multi-Speed 3 ton heat pump
Warranty: 10-year compressor, outdoor coil and parts when registered within 60 days (5 years if not). Parts only, not labor.
Air handler 5TEM6D04AV31S
Trane 5TEM6 variable-speed air handler, 2-3.5 ton
Warranty: 10-year parts when registered within 60 days. Parts only, not labor.
Heat strip BAYHTR1510BRKC
10 kW electric backup heat, with breaker
Warranty: 10-year limited parts warranty on the heater. Parts only, not labor.
Thermostat TCONT824AS52DC
Trane XL824 Wi-Fi smart thermostat
Warranty: 10-year parts when registered within 60 days. Parts only, not labor.
AHRI certificate 216763993: 17.1 SEER2, 12.5 EER2, 9 HSPF2
Heat pump 5TWR7048A1000
Trane XR17 Multi-Speed 4 ton heat pump
Warranty: 10-year compressor, outdoor coil and parts when registered within 60 days (5 years if not). Parts only, not labor.
Air handler 5TEM6D06AV41S
Trane 5TEM6 variable-speed air handler, 3-5 ton
Warranty: 10-year parts when registered within 60 days. Parts only, not labor.
Heat strip BAYHTR1517BRKA
15 kW electric backup heat, with breaker
Warranty: 10-year limited parts warranty on the heater. Parts only, not labor.
Thermostat TCONT824AS52DC
Trane XL824 Wi-Fi smart thermostat
Warranty: 10-year parts when registered within 60 days. Parts only, not labor.
AHRI certificate 216764083: 17.1 SEER2, 11.7 EER2, 9 HSPF2
Heat pump 5TWR7060A1000
Trane XR17 Multi-Speed 5 ton heat pump
Warranty: 10-year compressor, outdoor coil and parts when registered within 60 days (5 years if not). Parts only, not labor.
Air handler 5TEM6D07AV51S
Trane 5TEM6 variable-speed air handler, 3.5-5 ton
Warranty: 10-year parts when registered within 60 days. Parts only, not labor.
Heat strip BAYHTR1517BRKA
15 kW electric backup heat, with breaker
Warranty: 10-year limited parts warranty on the heater. Parts only, not labor.
Thermostat TCONT824AS52DC
Trane XL824 Wi-Fi smart thermostat
Warranty: 10-year parts when registered within 60 days. Parts only, not labor.
Pay cash or check and it’s about 10% off. Pick it under “How do you plan to pay?”
Multi-speed cooling spends most of its time on a lower speed, so it runs longer, steadier cycles and pulls more humidity out of the house. One outdoor unit heats and cools, with electric strip heat behind it for the coldest nights.
Not sure of your size? The old nameplate is a starting point, not the answer. I run a load calculation at the estimate visit.
Add to your system
Most installs need nothing extra. About 1 in 10 homes needs new ductwork, and I’ll tell you at the estimate visit.
Most homes need I check these at the estimate visit and reuse what’s good.
Nice to have Optional upgrades.
Warranty plans JB extended labor coverage, optional.
Without my professional installation there is no warranty from me, and a manufacturer can deny its warranty when the equipment is not installed by a licensed HVAC contractor.
Federal EPA Section 608 rules require an EPA certified technician to handle the refrigerant in this equipment. To buy equipment only, I need a copy of your EPA 608 certification, or the certification of the technician installing it.
Your size and final price are confirmed in writing after the load calculation, before anything is ordered.
Equipment only is available if you’d rather. Refrigerant-charged equipment has to be installed by an EPA Section 608 certified technician, Trane’s warranty has to be registered within 60 days and covers parts, not labor, and equipment is ordered for your job, so ask me about returns before you buy.
- Sizes
- 2, 3, 4, 5 ton
- Type
- Heat pump + air handler + electric heat strip
- Stages
- Multi-speed
- Heating and cooling
- Multi-speed
- Certified efficiency
- 17.1 SEER2, 9 HSPF2 (AHRI certified sizes)
Sizes with an AHRI certificate show it with their certified rating. The line name is the maker’s.
What these terms mean
- SEER2
- Cooling efficiency over a whole season. Higher means less power for the same cooling. The number shown is the AHRI-certified rating.
- EER2
- Cooling efficiency on a hot 95 degree afternoon, the kind of day Oklahoma has all July.
- HSPF2
- Heat pump heating efficiency over a winter. Higher is better.
- Two-stage
- Runs on low most of the time and high on the hottest days, for steadier temperatures.
- Variable speed (inverter)
- Ramps up and down to match the house: the steadiest temperatures and the best humidity control.
- AHRI certificate
- An independent certificate that this exact outdoor unit, coil and furnace or air handler were tested together and earn the rating shown.
Multi-speed runs on a lower speed most of the day and pulls more water out of the air. That’s what people mean when they say a house feels comfortable, not just cold.
Dave Hartzell, Master HVAC
Install day
- Before install day: an estimate visit, Manual J load calculation and duct check, then your written quote.
- I protect floors and walkways, shut off power, and take out the old equipment.
- New outdoor unit, coil and air handler set and connected.
- Line set flushed and reused if it’s the right size, brazed with nitrogen flowing. A new line set, major duct or electrical work is quoted separately.
- Vacuum, charge and startup readings with gauges on, written down.
- Cleanup, a walkthrough of the thermostat and filter, and the old equipment hauled off.
Most residential replacements take 4 to 8 hours. See my full install standard.
Warranty
- Trane 10-year compressor, outdoor coil and parts warranty when registered within 60 days (5 years if not registered). Parts only, not labor.
- Air handler: 10-year parts when registered within 60 days.
- You register it for the longer parts coverage, and my post-install email sends you the link.
- My 2-year labor warranty on the installation
Manufacturer warranties cover parts, not labor. My 2-year labor warranty covers the installation.
Paying for it
Ways to pay: cash or check (about 10% off every price), credit cards, and financing through Hearth, Wisetack, JB Financing, Klarna, Synchrony and Wells Fargo. Cash is king, and I take cards too. Hearth, Wisetack, Klarna and JB Financing check offers with a soft credit pull, so looking won’t touch your score. Hearth works with credit scores as low as 550. Subject to credit approval.
Questions about this system
How much does a Trane XR17 Multi-Speed heat pump + air handler system cost in Kingfisher Oklahoma?
Pick your size above: each size shows its equipment price, my $4,300 professional installation and the total. The smallest size starts at $14,100 for the equipment. Your size comes from a load calculation at the estimate visit, and you see the final price in writing before anything is ordered.
How do I know what size I need?
A system that’s too big short-cycles and leaves the house clammy, and one that’s too small runs all day in July. I run a Manual J load calculation on your house at the estimate visit so the size comes from the math, not the old unit’s nameplate.
What warranty comes with it?
Trane 10-year compressor, outdoor coil and parts warranty when registered within 60 days (5 years if not registered). Parts only, not labor. Air handler: 10-year parts when registered within 60 days. You register it for the longer parts coverage, and my post-install email sends you the link. My 2-year labor warranty covers the installation. Manufacturer warranties cover parts, not labor.
Can I buy the equipment only?
Equipment only is available if you’d rather. Refrigerant-charged equipment has to be installed by an EPA Section 608 certified technician, Trane’s warranty has to be registered within 60 days and covers parts, not labor, and equipment is ordered for your job, so ask me about returns before you buy.
Can I finance it?
Ways to pay: cash or check (about 10% off every price), credit cards, and financing through Hearth, Wisetack, JB Financing, Klarna, Synchrony and Wells Fargo. Cash is king, and I take cards too. Hearth, Wisetack, Klarna and JB Financing check offers with a soft credit pull, so looking won’t touch your score. Hearth works with credit scores as low as 550. Subject to credit approval.
Related systems
Other heat pump and air handler systems in 3 ton. Change the size above and these change with it.
Ready to see what fits your house?
I size it with a load calculation. New system? Free estimate. I measure the house and give you a written price, no pressure.
