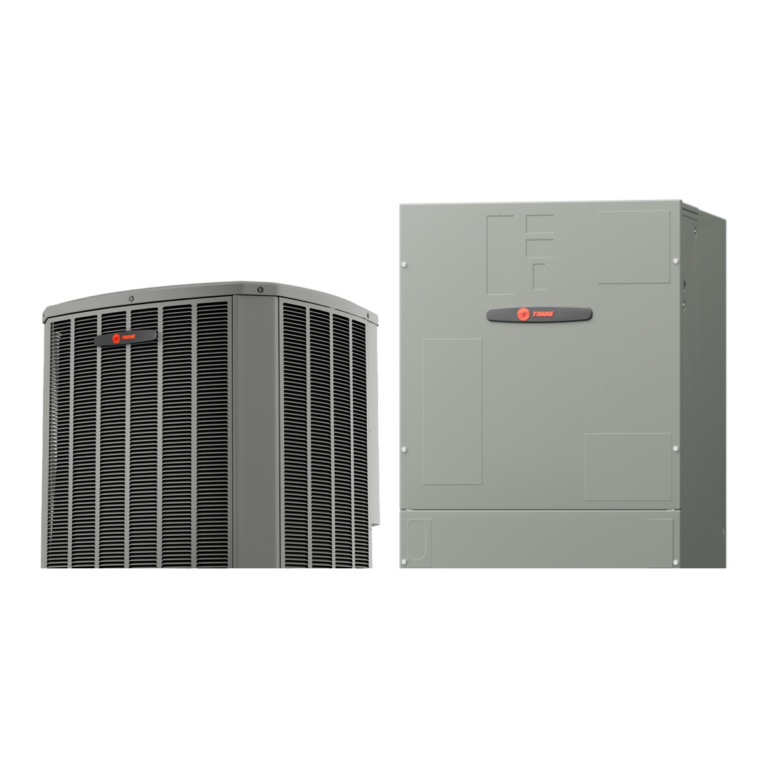

3 Ton Trane XV18 TruComfort Heat Pump and Air Handler System
Pick a size
AHRI certificate 216569816: 18.1 SEER2, 11.5 EER2, 8.5 HSPF2

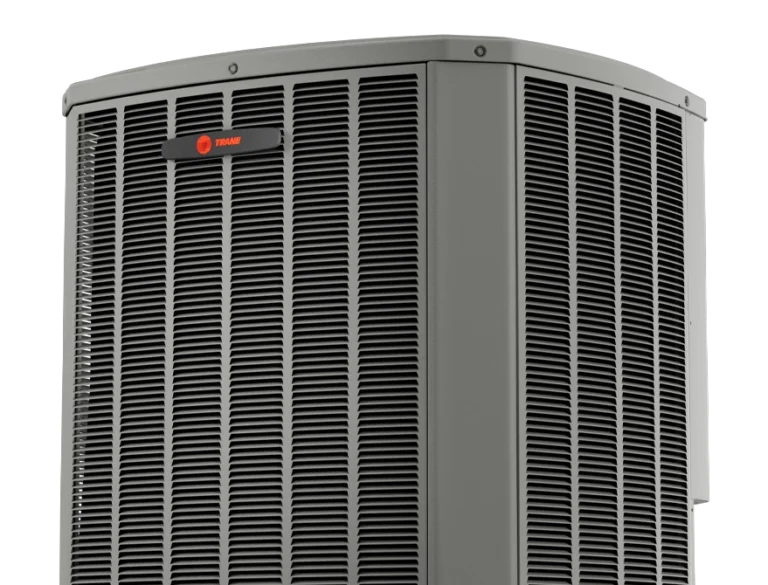

Heat pump 5TWV8X24A1000
XV18 TruComfort 2 ton variable-speed heat pump
Warranty: 12-year compressor and 10-year outdoor coil and parts when registered within 60 days (5 years if not). Parts only, not labor.
Air handler 5TAMXB02AV21D
Trane Hyperion 5TAMX variable-speed communicating air handler, 1.5-2 ton
Warranty: 10-year parts when registered within 60 days. Parts only, not labor.
Heat strip BAYEAAC08BK1BB
8 kW electric backup heat, with breaker
Warranty: 10-year limited parts warranty on the heater. Parts only, not labor.

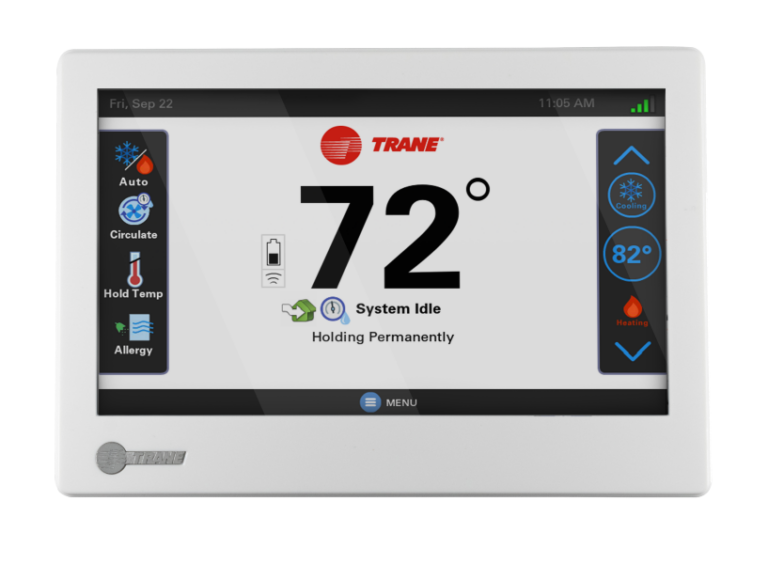

Control TLINK360A2VBU
Trane Link communicating control (required with the XV18)
Warranty: 10-year parts when registered within 60 days. Parts only, not labor.
AHRI certificate 216057002: 18.1 SEER2, 10.5 EER2, 8.5 HSPF2
Heat pump 5TWV8X36A1000
XV18 TruComfort 3 ton variable-speed heat pump
Warranty: 12-year compressor and 10-year outdoor coil and parts when registered within 60 days (5 years if not). Parts only, not labor.
Air handler 5TAMXD04AV31D
Trane Hyperion 5TAMX variable-speed communicating air handler, 2-3.5 ton
Warranty: 10-year parts when registered within 60 days. Parts only, not labor.
Heat strip BAYEAAC10BK1BB
10 kW electric backup heat, with breaker
Warranty: 10-year limited parts warranty on the heater. Parts only, not labor.
Control TLINK360A2VBU
Trane Link communicating control (required with the XV18)
Warranty: 10-year parts when registered within 60 days. Parts only, not labor.
AHRI certificate 216057012: 18.1 SEER2, 10.5 EER2, 8.5 HSPF2
Heat pump 5TWV8X48A1000
XV18 TruComfort 4 ton variable-speed heat pump
Warranty: 12-year compressor and 10-year outdoor coil and parts when registered within 60 days (5 years if not). Parts only, not labor.
Air handler 5TAMXD06AV41D
Trane Hyperion 5TAMX variable-speed communicating air handler, 3.5-5 ton
Warranty: 10-year parts when registered within 60 days. Parts only, not labor.
Heat strip BAYEABC15BK1BB
15 kW electric backup heat, with breaker
Warranty: 10-year limited parts warranty on the heater. Parts only, not labor.
Control TLINK360A2VBU
Trane Link communicating control (required with the XV18)
Warranty: 10-year parts when registered within 60 days. Parts only, not labor.
AHRI certificate 216057018: 18.1 SEER2, 10 EER2, 8.5 HSPF2
Heat pump 5TWV8X60A1000
XV18 TruComfort 5 ton variable-speed heat pump
Warranty: 12-year compressor and 10-year outdoor coil and parts when registered within 60 days (5 years if not). Parts only, not labor.
Air handler 5TAMXD07AV51D
Trane Hyperion 5TAMX variable-speed communicating air handler, 3.5-5 ton
Warranty: 10-year parts when registered within 60 days. Parts only, not labor.
Heat strip BAYEABC15BK1BB
15 kW electric backup heat, with breaker
Warranty: 10-year limited parts warranty on the heater. Parts only, not labor.
Control TLINK360A2VBU
Trane Link communicating control (required with the XV18)
Warranty: 10-year parts when registered within 60 days. Parts only, not labor.
Pay cash or check and it’s about 10% off. Pick it under “How do you plan to pay?”
Variable speed matches what the house needs almost exactly, so temperatures stay even from room to room. One outdoor unit heats and cools, with electric strip heat behind it for the coldest nights.
Not sure of your size? The old nameplate is a starting point, not the answer. I run a load calculation at the estimate visit.
Add to your system
Most installs need nothing extra. About 1 in 10 homes needs new ductwork, and I’ll tell you at the estimate visit.
Most homes need I check these at the estimate visit and reuse what’s good.
Nice to have Optional upgrades.
Warranty plans JB extended labor coverage, optional.
Without my professional installation there is no warranty from me, and a manufacturer can deny its warranty when the equipment is not installed by a licensed HVAC contractor.
Federal EPA Section 608 rules require an EPA certified technician to handle the refrigerant in this equipment. To buy equipment only, I need a copy of your EPA 608 certification, or the certification of the technician installing it.
Your size and final price are confirmed in writing after the load calculation, before anything is ordered.
Equipment only is available if you’d rather. Refrigerant-charged equipment has to be installed by an EPA Section 608 certified technician, Trane’s warranty has to be registered within 60 days and covers parts, not labor, and equipment is ordered for your job, so ask me about returns before you buy.
- Sizes
- 2, 3, 4, 5 ton
- Type
- Heat pump + air handler + electric heat strip
- Stages
- Variable speed
- Heating and cooling
- Variable speed
- Certified efficiency
- 18.1 SEER2, 8.5 HSPF2 (AHRI certified sizes)
- Control
- Trane Link required
Sizes with an AHRI certificate show it with their certified rating. The line name is the maker’s.
What these terms mean
- SEER2
- Cooling efficiency over a whole season. Higher means less power for the same cooling. The number shown is the AHRI-certified rating.
- EER2
- Cooling efficiency on a hot 95 degree afternoon, the kind of day Oklahoma has all July.
- HSPF2
- Heat pump heating efficiency over a winter. Higher is better.
- Two-stage
- Runs on low most of the time and high on the hottest days, for steadier temperatures.
- Variable speed (inverter)
- Ramps up and down to match the house: the steadiest temperatures and the best humidity control.
- AHRI certificate
- An independent certificate that this exact outdoor unit, coil and furnace or air handler were tested together and earn the rating shown.
Variable speed matches what the house needs almost exactly. It’s the system I’d put in my own home.
Dave Hartzell, Master HVAC
Install day
- Before install day: an estimate visit, Manual J load calculation and duct check, then your written quote.
- I protect floors and walkways, shut off power, and take out the old equipment.
- New outdoor unit, coil and air handler set and connected.
- Line set flushed and reused if it’s the right size, brazed with nitrogen flowing. A new line set, major duct or electrical work is quoted separately.
- Vacuum, charge and startup readings with gauges on, written down.
- Cleanup, a walkthrough of the thermostat and filter, and the old equipment hauled off.
Most residential replacements take 4 to 8 hours. See my full install standard.
Warranty
- Trane 12-year compressor and 10-year outdoor coil and parts warranty when registered within 60 days (5 years if not registered). Parts only, not labor.
- Air handler: 10-year parts when registered within 60 days.
- You register it for the longer parts coverage, and my post-install email sends you the link.
- My 2-year labor warranty on the installation
Manufacturer warranties cover parts, not labor. My 2-year labor warranty covers the installation.
Paying for it
Ways to pay: cash or check (about 10% off every price), credit cards, and financing through Hearth, Wisetack, JB Financing, Klarna, Synchrony and Wells Fargo. Cash is king, and I take cards too. Hearth, Wisetack, Klarna and JB Financing check offers with a soft credit pull, so looking won’t touch your score. Hearth works with credit scores as low as 550. Subject to credit approval.
Questions about this system
How much does a Trane XV18 TruComfort heat pump + air handler system cost in Kingfisher Oklahoma?
Pick your size above: each size shows its equipment price, my $4,300 professional installation and the total. The smallest size starts at $17,820 for the equipment. Your size comes from a load calculation at the estimate visit, and you see the final price in writing before anything is ordered.
How do I know what size I need?
A system that’s too big short-cycles and leaves the house clammy, and one that’s too small runs all day in July. I run a Manual J load calculation on your house at the estimate visit so the size comes from the math, not the old unit’s nameplate.
What warranty comes with it?
Trane 12-year compressor and 10-year outdoor coil and parts warranty when registered within 60 days (5 years if not registered). Parts only, not labor. Air handler: 10-year parts when registered within 60 days. You register it for the longer parts coverage, and my post-install email sends you the link. My 2-year labor warranty covers the installation. Manufacturer warranties cover parts, not labor.
Can I buy the equipment only?
Equipment only is available if you’d rather. Refrigerant-charged equipment has to be installed by an EPA Section 608 certified technician, Trane’s warranty has to be registered within 60 days and covers parts, not labor, and equipment is ordered for your job, so ask me about returns before you buy.
Can I finance it?
Ways to pay: cash or check (about 10% off every price), credit cards, and financing through Hearth, Wisetack, JB Financing, Klarna, Synchrony and Wells Fargo. Cash is king, and I take cards too. Hearth, Wisetack, Klarna and JB Financing check offers with a soft credit pull, so looking won’t touch your score. Hearth works with credit scores as low as 550. Subject to credit approval.
Related systems
Other heat pump and air handler systems in 3 ton. Change the size above and these change with it.
Ready to see what fits your house?
I size it with a load calculation. New system? Free estimate. I measure the house and give you a written price, no pressure.
